Possible issue with Tab5 and UiFlow v2.3.1 - (i2c driver install error)
-
I was trying to test the Tab5 with the M5Stack Tube/Air Pressure Unit sensor (U130).
Unfortunately, every time I try to deploy and run a simple program to show the readings from the Tube Pressure sensor using UiFlow v2.3.1 I get a i2c driver install error and the program does not load on the Tab5. See attached images...
Has anyone had success with using the Tab5 with the Tube Pressure sensor and UiFlow v2.3.1?
Thanks!
-
for start Tube Air Pressure unit is not i2c device, it gives out analog value... something not right with unit/tube pressure lib
-

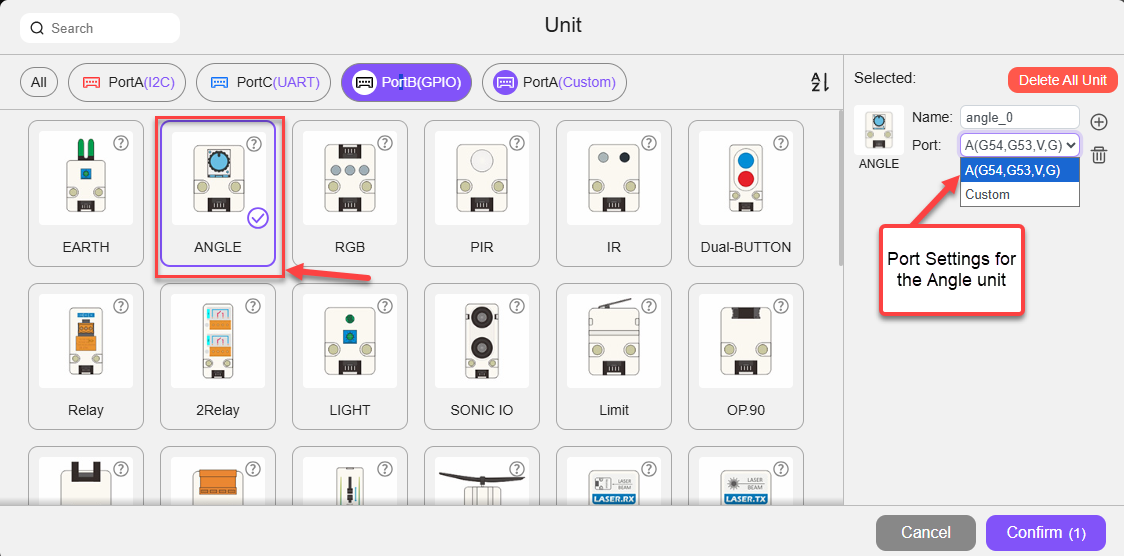

@robski Ok, so I am not going crazy... I thought the Tube Pressure sensor was analog [PortB(GPIO)] but when tried to configure the settings for Tube Pressure port in the Unit window of UiFlow, the port it came up with was Port A(G54, G53, V, G) as the default port... See attached photos...
Is there anyone at M5Stack support team we can reach out to regarding a possible bug with the Unit/tube pressure lib?
-
ports in general are configurable, some units have just one general port which can be analog, uart, I/O, i2c.... try to build project with diff analog sensor (even without this being connected) like potentiometer unit or something...
-

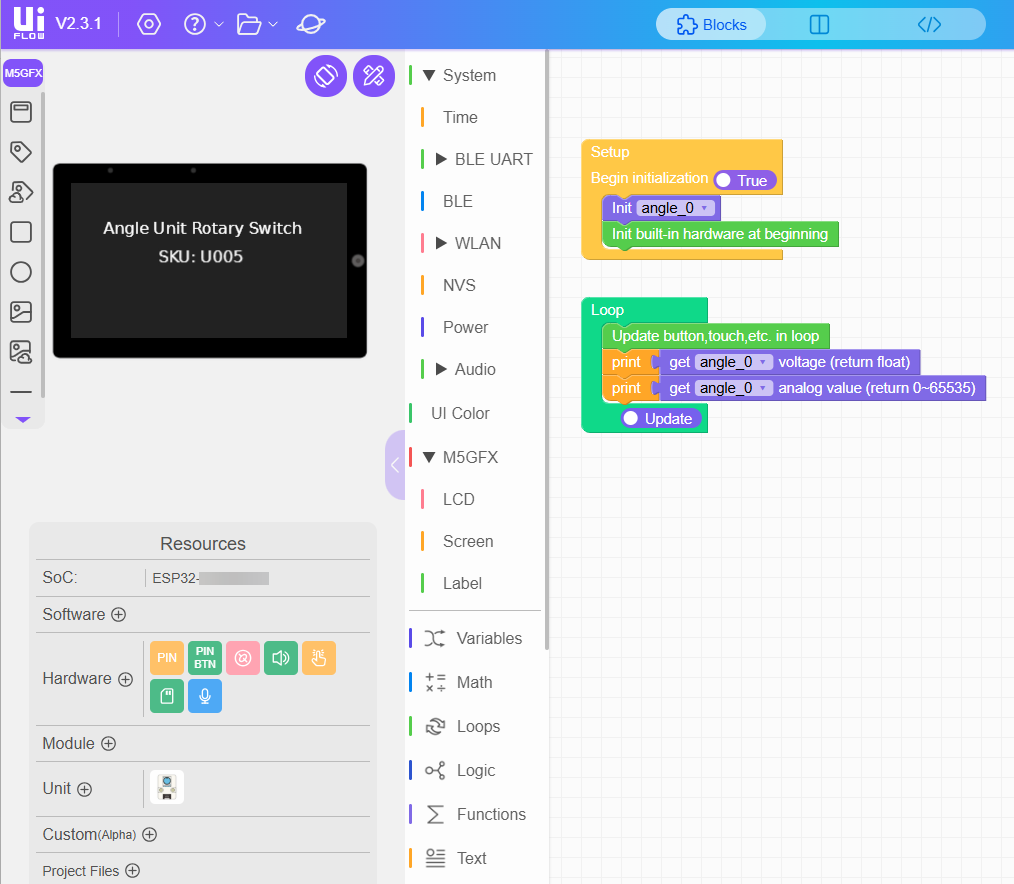

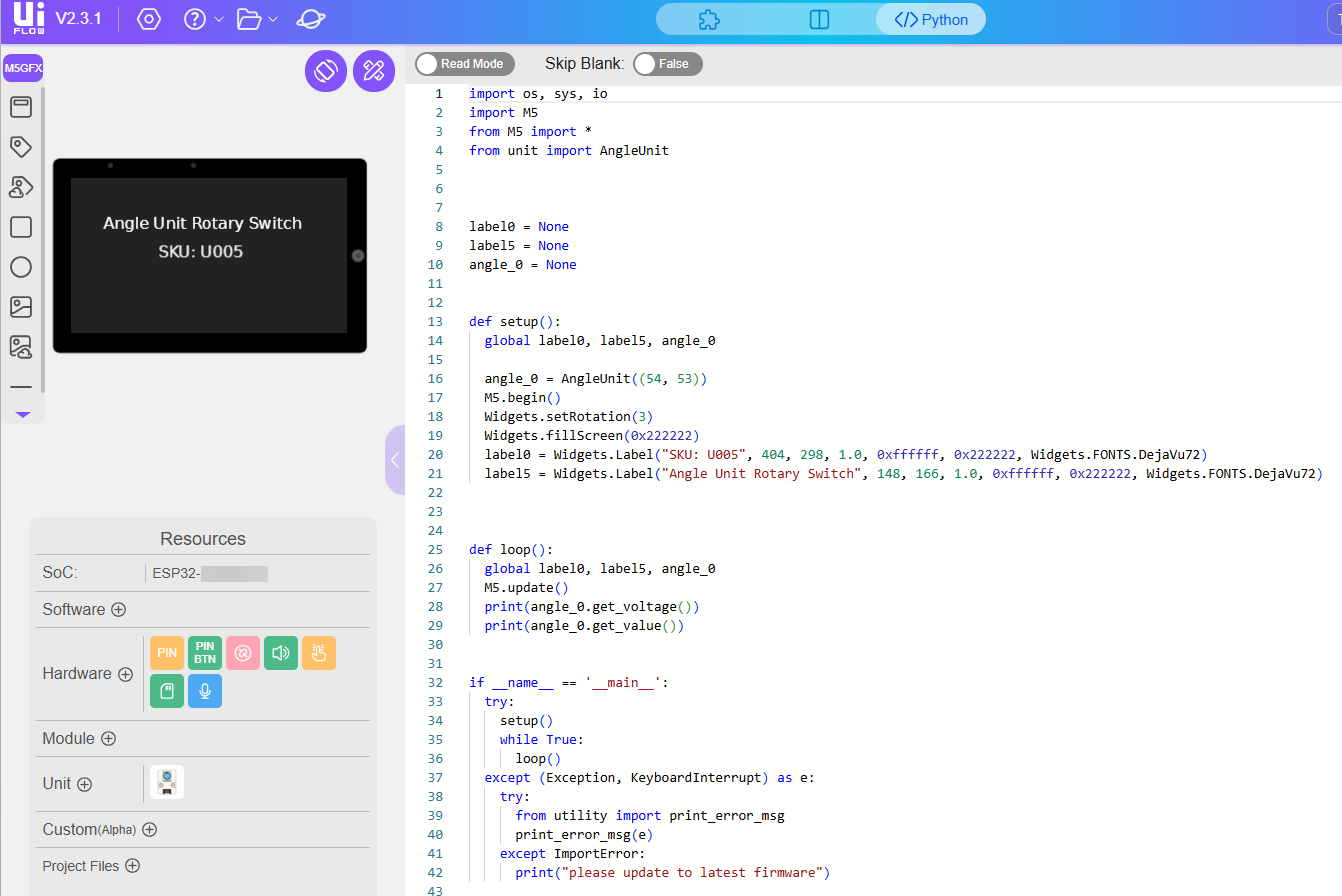

@robski Thanks again for responding to the post... I tried the Mini Angle Unit Rotary Switch with Potentiometer (SKU: U005) with a very simple code and the same error occurred... Very strange... I wonder if I am the only one having this error show up when trying to use Tab5 with UiFlow v2.3.1... Is anyone else seeing this error message occur when trying to use Tab5 with a M5Stack sensor unit in UiFlow v2.3.1?
-
try with analog value, delete get voltage block
on your original "tube pressure" example use raw analog value for start too
